Qingzhou Tenmpo Machinery Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | Tempo |
| Supply Ability : | 50 Set/Sets per Year |
| Price : | $300,000.00/sets 1-19 sets |

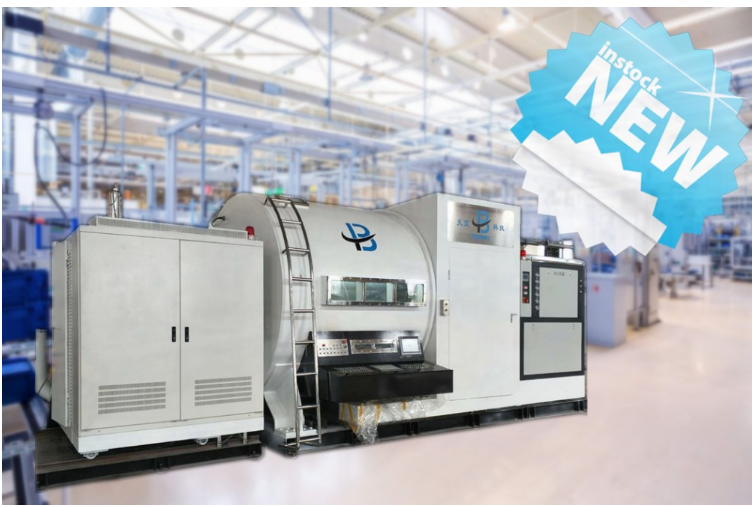

Product Name | Free Span Film Metallizing Aluminium Vacuum Metallizer |
Size | Customized Size |
Equipment Data | Weight:20Tons/ Powder:300KW/ Voltage:380V |
Warranty | 1 Year |
Film-forming Species | Aluminum Film |
Coating Technology | Vacuum Evaporation Coating |
Vacuum Time | Pumping From The Empty Atmosphere To The 5*10-3pa Less Than 15
Minutes |
Operating System | Touch Screen +PLC |
Advantage | Be in the leading level of the industry with the suspension design
.Our production no planting lines, no sidelines, no folds , no splashed aluminum dross and no pollution. Use the stepping motor system can guarantee the uniformity of the planting. Test thickness on line can guarantee the products quality .Particular suitable for aluminizing on coating film, cost-effective. | ||||
Characteristic | Vacuum chamber: | circular vacuum chamber with double open structure, designed with
unilateral reel. | |||
Product usage : | drug package film, cigarette package film, laser film ,hot stamping
film, transfer film, dielectric film. | ||||
Performance: | high speed, high efficiency, high stability | ||||
Winding system: | four motor four roll drive structure, design with unilateral reel,
increase the stability for a long-term. Coating film with lower
temperature, minimal distortion of the film ,the speed is up to
700/min. | ||||
Evaporator source: | the top clamp fixed alternate permutation to make the evaporation
well-proportioned and save time to change evaporator boat, to improve productivity; reliable evaporator source design, descend on error rate. Guarantee the uniformity by stepping motor system. | ||||
Control system: | Siemens intergraded control system ,profibus, human-computer
interface, PLC control; high precision AC servo motor drive, four-roller four motors constant tension winding, more stability in control, high precision digital control evaporate; PLC control the stepping motor, convenient for adjust the stability of wire feed, greatly improved reliability. Plating thickness on line measurement and control technology can guarantee the products quality. | ||||
Vacuum system: | inverter speed regulation system. Roots pump oil free pumping
system, expedite pumping speed and more energy-saving, more
efficiency; equipped ultralow temperature cold trap, applies to
work in any climate. | ||||
|
|
